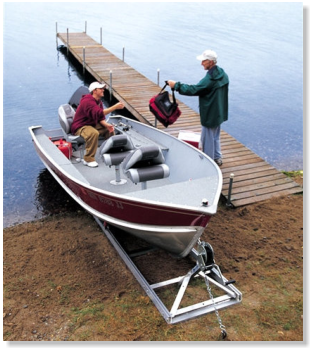

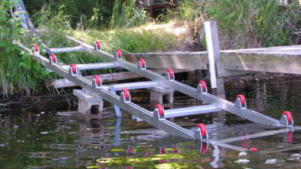

This versatile, adjustable model fits small watercraft up to 1200 lbs. — from sailboats to Jon boats to small V-hull and flat-hull fishing boats. Length is 18 feet. Rail width adjusts from 24″ to 40″. Includes 16 polyurethane “donut” style rollers, which mount anywhere along the rails. Also available are complete 9 foot add-on sections. The standard 1700-lb. winch with 25′ strap is upgradeable to a 1500 or 2500-lb. self-braking winch with 25′ or 50′ cables. The easy-to-assemble kit is complete with ground anchoring system.

MAX. WEIGHT CAPACITY 1200 lbs . WEIGHT 130 lbs. OVERALL LENGTH 17′ 10″ OVERALL WIDTH Adjustable 24″-40″ RAIL WIDTH Adjustable 24″-40″ ROLLER TYPE “Donut” shaped Polyolefin NUMBER OF ROLLERS 16 ROLLER BEARING Delrin™ spanner and bushing TILTING ROLLER AXLE N/A CONSTRUCTION Aluminum HARDWARE Stainless Steel WINCH Zinc Plated “Dead lift” Rating 1,700 lbs. Gear Ratio 5:1 Strap Length 25 feet Hook Type Standard Boat Hook ANCHORING Screw-in Ground Anchor with Hardware MIN. REQUIRED ANCHORING Screw-in or Fasten to Wall or Footing WARRANTY 5 Years** ADD-ON SECTIONS 8′ 11” NUMBER OF ROLLERS 12 WINCH UPGRADE AVAILABLE 1,500 or 2,500-lb. self-braking w/ 25′ cable CABLE UPGRADE 50′ *** SUPPORT LEG KIT Yes WIDE SUPPORT KIT Yes FLOAT KIT Yes **2-Year warranty for salt water applications ***Available with upgraded winch only

Click here for Assembly Manual
