Model Pontoon

Getting your pontoon on and off the water used to be an expensive proposition. Roll-n-Go’s docking system for pontoons handles pontoons up to 2000 lbs. with 18″ to 26″ (round only) pontoon diameters. Rails adjust from 66″ to 82″ on-center pontoon separation. Includes 52 polyurethane “donut” style rollers, which mount anywhere along rails. Also available are complete 9 foot add-on sections. The standard 1700-lb. winch with 25′ strap is upgradeable to a 1500 or 2500-lb. self-braking winch with 25′ or 50′ cables. Easy to assemble, includes ground anchoring system.
MAX. WEIGHT CAPACITY 2000 lbs . WEIGHT 250 lbs. OVERALL LENGTH 17′ 10″ OVERALL WIDTH Adjustable* RAIL WIDTH Adjustable* ROLLER TYPE “Donut” shaped Polyurethane NUMBER OF ROLLERS 52 ROLLER BEARING Delrin™ spanner and bushing TILTING ROLLER AXLE Yes CONSTRUCTION Aluminum HARDWARE Stainless Steel WINCH Zinc Plated “Dead lift” Rating 1,700 lbs. Gear Ratio 5:1 Strap Length 25 feet Hook Type Standard Boat Hook ANCHORING Screw-in Ground Anchor with Hardware MIN. REQUIRED ANCHORING Screw-in or Fasten to Wall or Footing WARRANTY 5 Years** ADD-ON SECTIONS 8′ 11” NUMBER OF ROLLERS 28 WINCH UPGRADE AVAILABLE 1,500 or 2,500-lb. self-braking w/ 25′ cable CABLE UPGRADE 50′ *** SUPPORT LEG KIT Yes WIDE SUPPORT KIT Yes FLOAT KIT N/A *Adjustable rail width for round pontoons spaced between 66″ and 82″ on center. **2-Year warranty for salt water applications ***Available with upgraded winch only

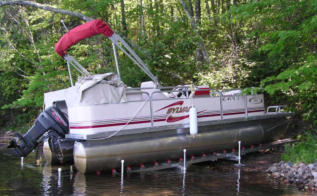

pontoon ramp on sandy beach

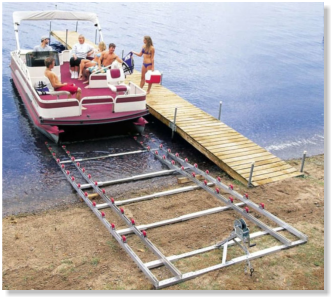

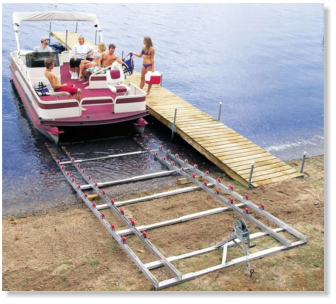

pontoon ramp with boat docked diagram of model pontoon measurements
Click here for Assembly Manual
