Model 750

Roll-n-Go’s newest model, the 750 is the most affordable shore docking system. It combines durable, rust free components with all the standard features you’ve come to expect from the leader in shore docking. This ramp has an 18′ overall length, 1,100lb. winch with a 20′ strap and (12) non-marking, polyurethane “donut” rollers make this the ideal model for smaller fishing, sail and row boats. Two rail width settings and three winch height adjustments accommodate many types of watercraft. Available with 9′ Extensions and Leg Kits for use on contoured shorelines.
MAX. WEIGHT CAPACITY 750 lbs . WEIGHT 92 lbs. OVERALL LENGTH 17′ 10″ OVERALL WIDTH Adjustable 21″-24″ RAIL WIDTH Adjustable 21″-24″ ROLLER TYPE “Donut” shaped Polyolefin NUMBER OF ROLLERS 12 ROLLER BEARING Delrin™ spanner and bushing TILTING ROLLER AXLE N/A CONSTRUCTION Aluminum HARDWARE Stainless Steel WINCH Zinc Plated “Dead lift” Rating 1,100 lbs. Gear Ratio 4:1 Strap Length 20 feet Hook Type Standard Boat Hook ANCHORING Screw-in Ground Anchor with Hardware MIN. REQUIRED ANCHORING Screw-in or Fasten to Wall or Footing WARRANTY 5 Years** ADD-ON SECTIONS 8′ 11” NUMBER OF ROLLERS 10 CABLE UPGRADE 50′ *** SUPPORT LEG KIT Yes WIDE SUPPORT KIT Yes FLOAT KIT Yes **2-Year warranty for salt water applications ***Available with upgraded winch only

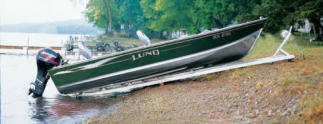

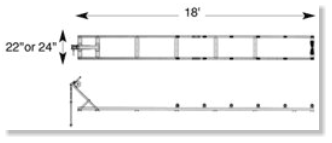

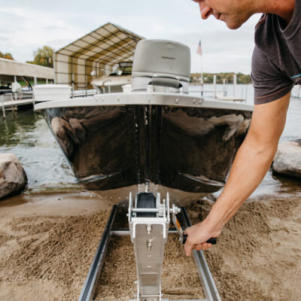

diagram of ramp measurements man pulling boat up ramp using hand crank fishing boat on ramp
Click here for Assembly Manual
(906) 214-4062
(906) 214-4062
108 Battye Rd Caspian, MI 49915
Waterfront Products and Power Sports is the Upper Peninsula and Northern Wisconsin's source for docks, lifts, and services. Located in Caspian, Michigan.

Products and People you can

depend on.

Monday-Friday 9 AM-4 PM  Saturday 9 AM-12 PM  Closed Sunday  
Copyright © 2024, Waterfront Products and Power Sports LLC. All rights reserved. Website by North Country Website Design

Model 750

Roll-n-Go’s newest model, the 750 is the most affordable shore docking system. It combines durable, rust free components with all the standard features you’ve come to expect from the leader in shore docking. This ramp has an 18′ overall length, 1,100lb. winch with a 20′ strap and (12) non-marking, polyurethane “donut” rollers make this the ideal model for smaller fishing, sail and row boats. Two rail width settings and three winch height adjustments accommodate many types of watercraft. Available with 9′ Extensions and Leg Kits for use on contoured shorelines.
MAX. WEIGHT CAPACITY 750 lbs . WEIGHT 92 lbs. OVERALL LENGTH 17′ 10″ OVERALL WIDTH Adjustable 21″-24″ RAIL WIDTH Adjustable 21″-24″ ROLLER TYPE “Donut” shaped Polyolefin NUMBER OF ROLLERS 12 ROLLER BEARING Delrin™ spanner and bushing TILTING ROLLER AXLE N/A CONSTRUCTION Aluminum HARDWARE Stainless Steel WINCH Zinc Plated “Dead lift” Rating 1,100 lbs. Gear Ratio 4:1 Strap Length 20 feet Hook Type Standard Boat Hook ANCHORING Screw-in Ground Anchor with Hardware MIN. REQUIRED ANCHORING Screw-in or Fasten to Wall or Footing WARRANTY 5 Years** ADD-ON SECTIONS 8′ 11” NUMBER OF ROLLERS 10 CABLE UPGRADE 50′ *** SUPPORT LEG KIT Yes WIDE SUPPORT KIT Yes FLOAT KIT Yes **2-Year warranty for salt water applications ***Available with upgraded winch only
Click here for Assembly Manual
